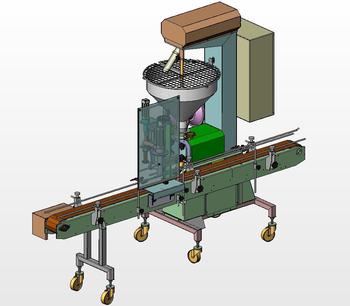

Automatic lobe dosing machine


Technical features:

Automatic lobe dosing machine


  • Possinility to adjust the dose from 0 to 40 strokes/minutes depending on the size and nature of the product
  • Dosing equipment: EHEDG lobes
  • Dosing capacity : from 10 g to 5 kg
  • Rotating lobe system (stainless-steel 316L) controlled by a motor entirely dismantable by hand with a 50 litre conical hopper with mixer (specially conceived to homogenize the product during dosage)
  • Ø 25 mm /course 80 mm long paste cutter
  • Dosage adjustment during motion
  • Touchscreen
  • Automatic distribution of the jars at the dosing station
  • Stainless-steel nozzle filling device (paste cutter) on an alternative motion slide. Dosing from underneath (up and down motion)
  • Product temperature: from 5 to 110°C

Available options:

  • heating hopper :       2,9 Kw or 6 Kw steam generator

  • fixed paste-cutter

  • Mobile paste-cutter

  • Unpacking table
                 - Ø 1000 mm diameter table driven by a gear motor


  • table de réception
